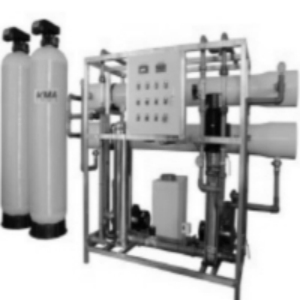

MEMRO Packaged Reverse Osmosis Systems can be used to provide excellent quality
drinking water, from brackish or Saline water with TDS < 2000 ppm. These compact units
are ideal for treating water capacities from 250 LPH up to 20 000 LPH.
Features:
Pre-Filtration with isolating valve and upstream/downstream pressure Gauges
Inlet Solenoid Valve
Adjustable low inlet pressure switch
Multi stage Vertical Pump
Valve to adjust the service pressure with pressure Gauge
Fiberglass membrane housings
Low energy and BW membranes
Conductivity meter, Stainless steel concentrate and recirculation globe valve
Flush solenoid Valve
Impulse turbine to measure Permeate flow, Concentrate and Recirculation Flow
PVC connection valve for CIP
PLC
Electrical enclosure 400 V |+ GND
Application areas:
Process Water Applications
Food and Beverage
Drinking Water
Electroplating
Pre-treatment for Mixed Bed Boiler Feed Water
Pharmaceutical
Petrochemical
Waste Water re-use
Agriculture
Pre- treatment for EDI
Dialysis feed water
Oil and Gas applications
Pre-Treatment Options Available
Resin filter – includes Resin, Riser and Strainers, digital valve, brine Tank and Grid with Brine valve.
Sand Filter – with Auto backwash head and AFM or sand Media installed.
Granular Carbon filter – with auto backwash head and Granular Carbon installed.
Post Treatment Options - includes complete UV system and Spare UV Globe.
Stainless steel recirculation system with UV light on Recirculation line for bacteria and endotoxin disinfection,
with Stainless steel storage tank
MemAqua Solutions are able to manufacture, supply and fit these Packaged plants as per our client’s requirements
and we tailor make systems for the following applications were specific treatment processes are required.
